小型儀器滾珠襯套軸承

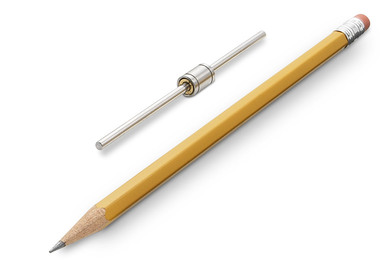

精確度水平和緊湊的尺寸令小型儀器軸承特別適合要求高可重復性和響應性的小型機械或裝置。替換高摩擦平面軸承時，儀器軸承可持續實現低摩擦系數，消除粘滑運動并提供平穩的線性特性。 每個儀器軸承可裝配一個匹配的 60 Case
LinearRace 軸系，以最小化裝配操作、優化系統性能和精確度。
Miniature Instrument Ball Bushing 規格:
| 小型儀器 滾珠襯套軸承 |
工作孔 徑（英寸） |
60 Case LinearRace 部件編號 |
LinearRace 最大長度（英寸 |
動態(1)負載 能力（磅力) |
|---|---|---|---|---|
| INST 258-SS | .1250 / .1247 | LRI 2 | 12 | 7 |
| INST 369-SS | .1875 / .1872 | LRI 3 | 12 | 9 |
| INST 4812-SS | .2500 / .2497 | LRI 4 | 12 | 19 |
| 小型儀器 滾珠襯套軸承 和 LinearRace 套件 |
標稱 直徑（英寸） |
外 直徑（英寸） |
滾珠襯套 軸承 長度（英寸） |
滾珠循環次數 |
| INST 2 MS1 | .1250 | .3125 / .3121 | .500 / .485 | 3 |
| INST 3 MS1 | .1875 | .3750 / .3746 | .562 / .547 | 3 |
| INST 4 MS1 | .2500 | .5000 / .4996 | .750 / .735 | 3 |
小型儀器襯套軸承優點：
- 英寸孔徑尺寸
- 可選配套
- 低至 0.001 的摩擦系數
- 緊湊尺寸適合低慣性和重量
- 至 19 磅力的負載能力范圍
- 精密軸承滾珠、軸套和 60 Case LinearRace 由抗腐蝕不銹鋼制成
60 Case® LinearRace® Shafting: Fully Stocked to Keep Your Design Projects on Track
Thomson 60 Case Linear Race shafting has been popular for decades for its consistent reliability and performance. To help customers get this high-quality, lab-tested product into their hands as quickly as possible for their time-sensitive design projects, Thomson goes to great lengths.
Shafting Selector Tool: Special Machining Online Demo
With the special machining add-on to the Thomson online shafting selector tool, the burden of creating 2D drawings is relieved, and the amount of time needed to specify the machined shaft is dramatically reduced.
Watch this comprehensive demo and see how this feature offers the most commonly used machining options, which are automatically converted to manufacturable 2D drawings for download as printable PDFs or sharable links.
Try the online shafting selector tool and special machining add-on at: https://www.thomsonlinear.com/en/products/shafting
For any cases in which your machining configurations don't fall within the scope of our tool's options, Thomson application engineers are always ready to provide fast help.
Browse Miniature Instrument Ball Bushing Bearing Part Numbers
