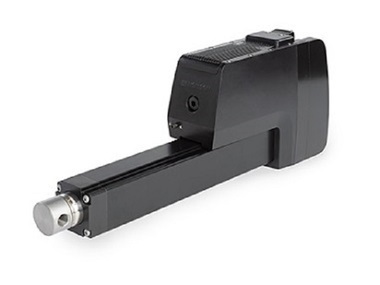

Thomson Electrak XD開創了電動推桿的新紀元，不僅能夠輕松應對液壓應用，而且還比競爭技術更智能、更小巧、更高效。除了高負載能力（可達25,000 N）外，Electrak XD還能可靠抵御各種嚴苛條件，并具有更強的控制性能以及基于板載控制選件的診斷功能。
想將液壓系統轉換為電動系統？請聯系Thomson執行器產品經理了解更多信息。
Learn how select Thomson electric linear actuators are able to withstand shock loads, which helps prolong the life of the actuator and the entire machine it serves.
Did you know that select Thomson electric linear actuators allow you to achieve movement where power may not be available? Learn how this feature, which may come in handy during machine maintenance or installation, works.
When unexpected circumstances, such as power failures, occur, learn how manual brake release allows you to literally take matters into your own hands. This feature is available on select Thomson electric linear actuators.
Thomson Electrak XD系列電動推桿閃亮登場。它性能強勁，足以進軍新的液壓應用領域，同時XD電動推桿比競品更智能、更小巧、更高效。該型號將負載處理能力提升到了新的高度，負載高達25000N。占空比高達100%，行程長達1200mm，速度高達75 mm/s，均彰顯了其不俗的性能。如何利用XD系列革新您的未來設計項目？
| 性能規格 | B055 | B080 | B160 | B200 | B250 |
|---|---|---|---|---|---|
| 輸入電壓 (VDC) |
24 Vdc 48 Vdc |
24 Vdc 48 Vdc |
24 Vdc 48 Vdc |
24 Vdc 48 Vdc |
24 Vdc 48 Vdc |
| 最小/最大行程長度：mm | 1200 | 1200 | 1000 | 800 | 650 |
| 最大動態負載：N (lbs) | 5500 (1236) | 8000 (1798) | 16000 (3596) | 20000 (4496) | 25000 (5620) |
| 最大靜態負載：N (lbs) | 11.000 (2472) | 16.000 (3596) | 32.000 (7193) | 32.000 (7193) | 32.000 (7193) |
| 最大空載速度： mm/s (in/s) |
24V 65 (2.56) 48V 75 (2.95) |
24V 50 (1.97) 48V 50 (1.97) |
24V 25 (0.98) 48V 25 (0.98) |
24V 16 (0.63) 48V 20 (0.79) |
24V 16 (0.63) 48V 16 (0.63) |
| 最大滿載速度： mm/s (in/s) |
24V 65 (2.56) 48V 75 (2.95) |
24V 50 (1.97) 48V 50 (1.97) |
24V 25 (0.98) 48V 25 (0.98) |
24V 16 (0.63) 48V 20 (0.79) |
24V 16 (0.63) 48V 16 (0.63) |
| 電流消耗@ 空載/最大負載 |
24VDC/30A，48VDC/15A | 24VDC/30A，48VDC/15A | 24VDC/30A，48VDC/15A | 24VDC/30A，48VDC/15A | 24VDC/30A，48VDC/15A |
| 滿載占空比 @ 25 ºC (77 ºF) |
45% | 45% | 45% | 45% | 45% |
| 絲杠/螺母類型 | Ball | Ball | Ball | Ball | Ball |
| 工作溫度：ºC (ºF) |
-40到85 （-40到185） |
-40到85 （-40到185） |
-40到85 （-40到185） |
-40到85 （-40到185） |
-40到85 （-40到185） |
|
防護等級： |
IP66，IP67，IP69K / IP66 | IP66，IP67，IP69K / IP66 | IP66，IP67，IP69K / IP66 | IP66，IP67，IP69K / IP66 | IP66，IP67，IP69K / IP66 |
| 限制扭矩：Nm (lbs) | 0 | 0 | 0 | 0 | 0 |
| 端隙（最大值）：mm(in) | 1.200 (0.047) | 1.200 (0.047) | 1.200 (0.047) | 1.200 (0.047) | 1.200 (0.047) |
| 耐鹽霧性（小時） | 500 | 500 | 500 | 500 | 500 |
| 執行器重量 |
11.9 @ 100 mm 23.4 @ 1200 mm |
11.9 @ 100 mm 23.4 @ 1200 mm |
11.9 @ 100 mm 21.3 @ 1000 mm |
11.9 @ 100 mm 19.2 @ 800 mm |
11.9 @ 100 mm 17.7 @ 650 mm |
"
"
